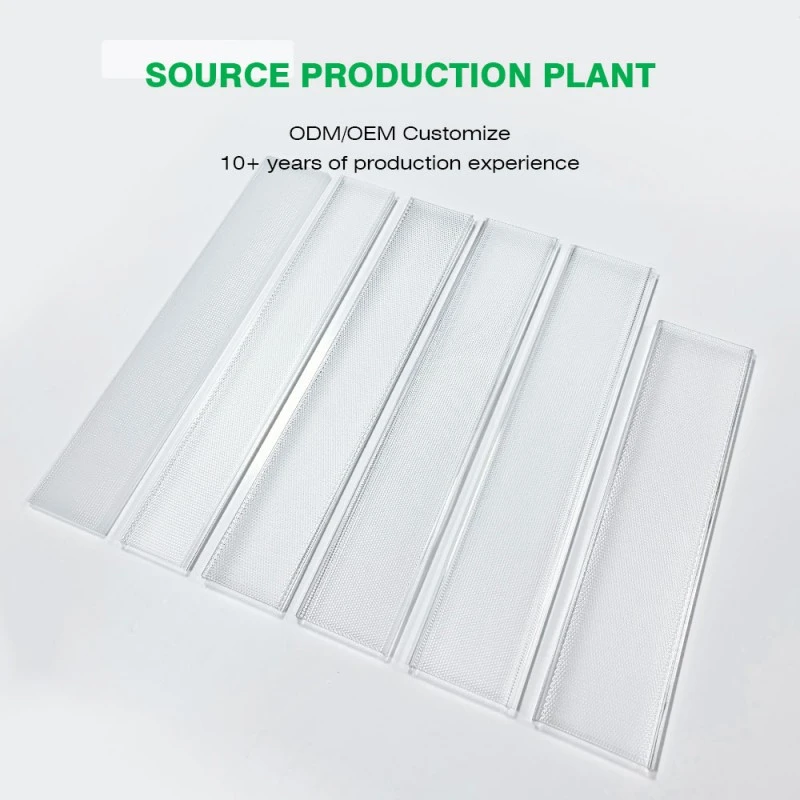

Polycarbonate Diamond Pattern Extruded Lampshade

A Polycarbonate Diamond Pattern Extruded Lampshade (PC Diamond Pattern Diffuser) refers to a lampshade manufactured from Polycarbonate (PC) material, featuring a surface design characterized by a three-dimensional diamond-shaped texture. Typically formed through extrusion or injection molding processes, this structure serves not only as a decorative element but also facilitates the secondary dispersion and refraction of light, thereby achieving a softer, more uniform, and visually layered lighting effect.

Core Features

Material: Polycarbonate (PC, High-Strength Engineering Plastic)

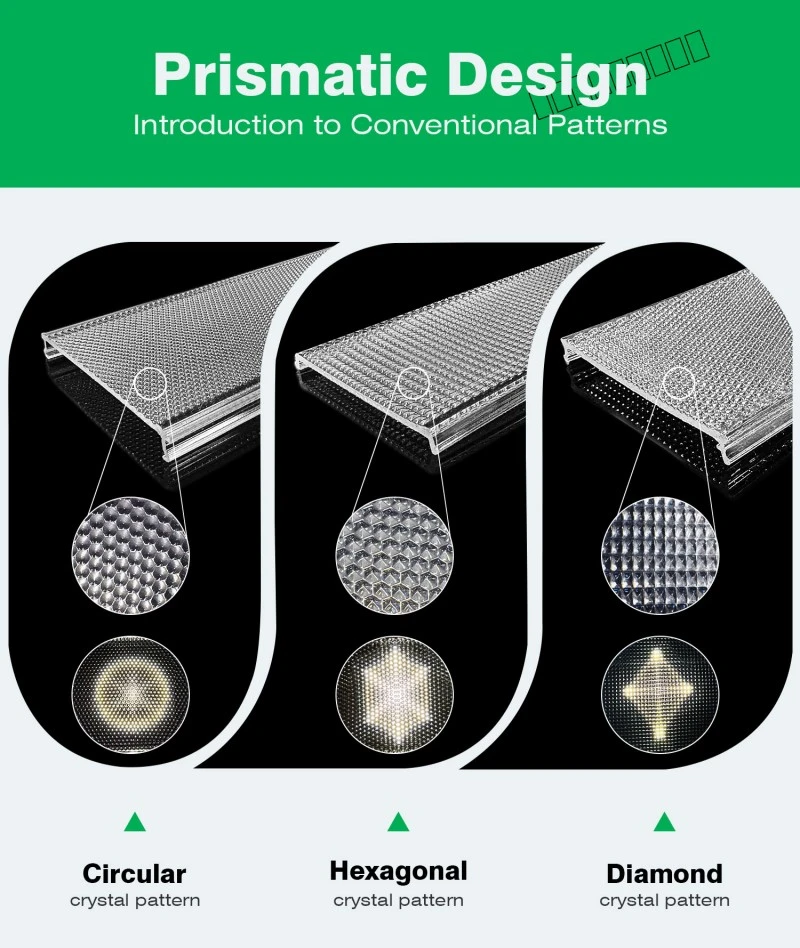

Structure: Surface Diamond Geometric Texture (Diamond Pattern)

Process: Extrusion / Injection Molding / Compression Molding

Function: Light Guiding + Diffusion + Anti-Glare + Decoration

Product Parameters

Key Advantages & Selling Points

1. Excellent Impact Resistance

PC material possesses significantly higher strength than acrylic (PMMA) and is highly resistant to breakage, making it ideal for lighting applications in industrial, outdoor, or public environments.

2. Superior Light Diffusion Uniformity

The diamond texture facilitates multi-angle refraction and scattering of light, effectively minimizing "hotspots" (visible LED bright points) to achieve:

●Spot-free illumination

●Soft, gentle lighting

●Enhanced lighting comfort

3. Excellent Anti-Glare Performance

The Diamond Pattern structure effectively reduces direct glare (lowering UGR values), making it suitable for:

●Office lighting

●Commercial lighting

●Healthcare and educational environments

4. High Light Transmittance + Optimized Luminous Efficiency

While ensuring effective light diffusion, the PC material maintains high light transmittance (typically 80%+), striking an optimal balance between brightness and uniformity.

5. High Heat Resistance & Flame Retardancy

PC exhibits excellent heat resistance (up to approximately 120°C) and can achieve UL94 V-2 / V-0 flame retardancy ratings (customizable), ensuring enhanced safety.

6. Strong Aesthetic Appeal; Enhances Product Value

When illuminated, the diamond texture creates a crystalline, refractive visual effect that adds depth and sophistication to the luminaire's appearance, making it ideal for mid-to-high-end lighting products.

7. Highly Customizable (OEM/ODM)

●Colors: Transparent / Milky White / Custom Colors

●Optical Effects: High Diffusion / Semi-Diffusion

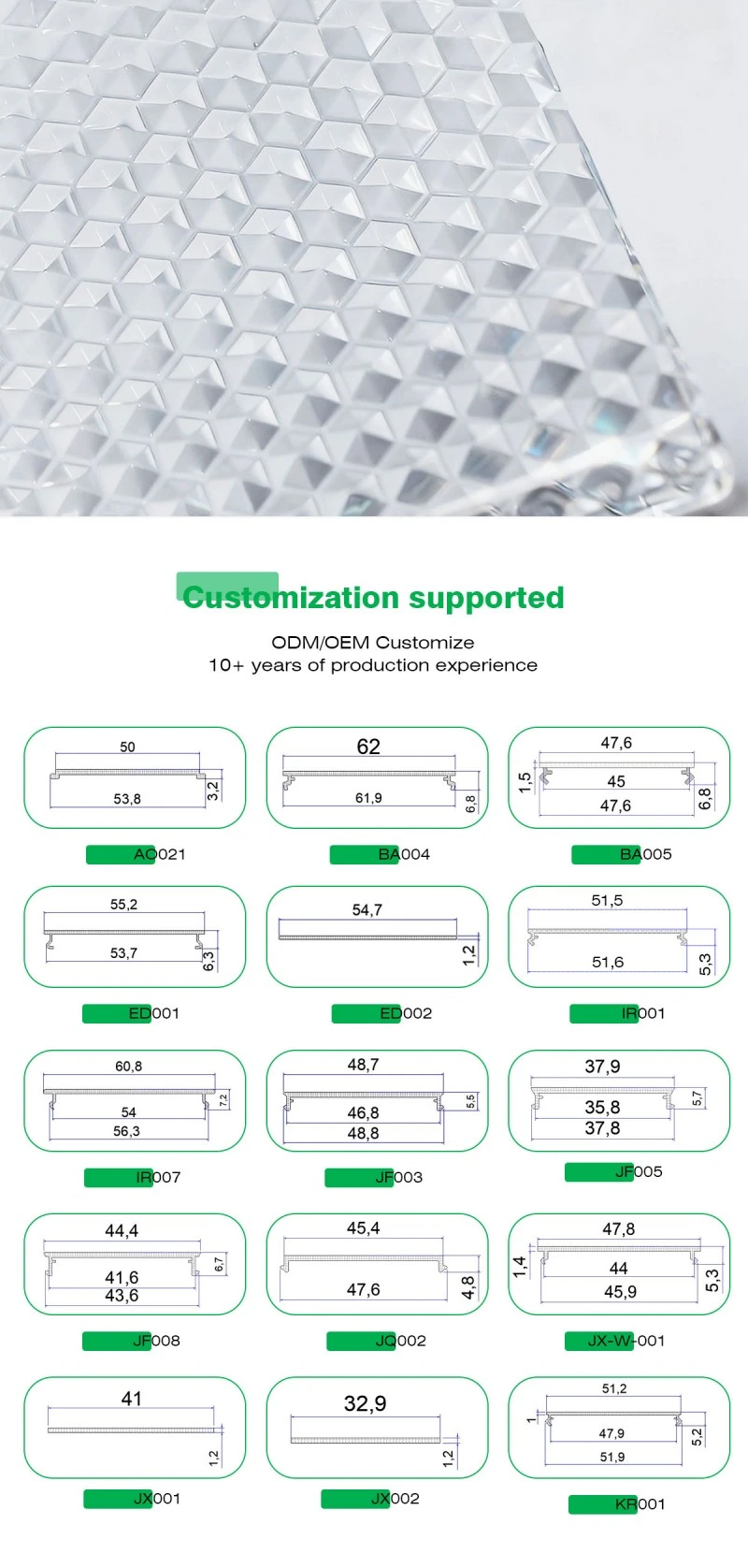

●Dimensions & Structure: Supports custom mold development

Excellent Design and Materials

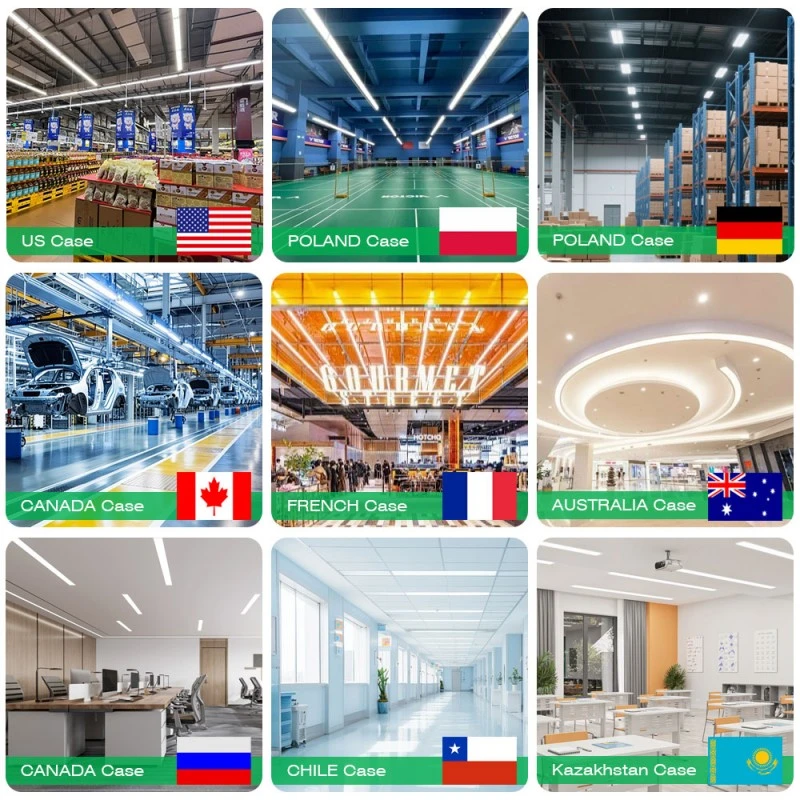

This modern and stylish polycarbonate diamond-patterned lampshade is ideal for a variety of venues, including offices, meeting rooms, galleries, retail stores, hotels, and restaurants. Its transparent material blends seamlessly with any décor style, while the diamond pattern adds a touch of refined elegance. Made primarily of high-quality polycarbonate, the lampshade boasts durability and a long lifespan, making it an environmentally friendly choice for both residential and commercial applications.

Environmentally Friendly and Lightweight

A major highlight of this lampshade is its eco-friendly nature. Polycarbonate is a recyclable material, contributing to a more sustainable future. Furthermore, its lightweight design makes installation extremely easy, requiring no special tools or significant manpower for quick and easy completion. This feature is particularly useful for businesses that frequently need to change their lighting arrangements or homeowners who want to effortlessly refresh their living spaces.

Innovative Craftsmanship

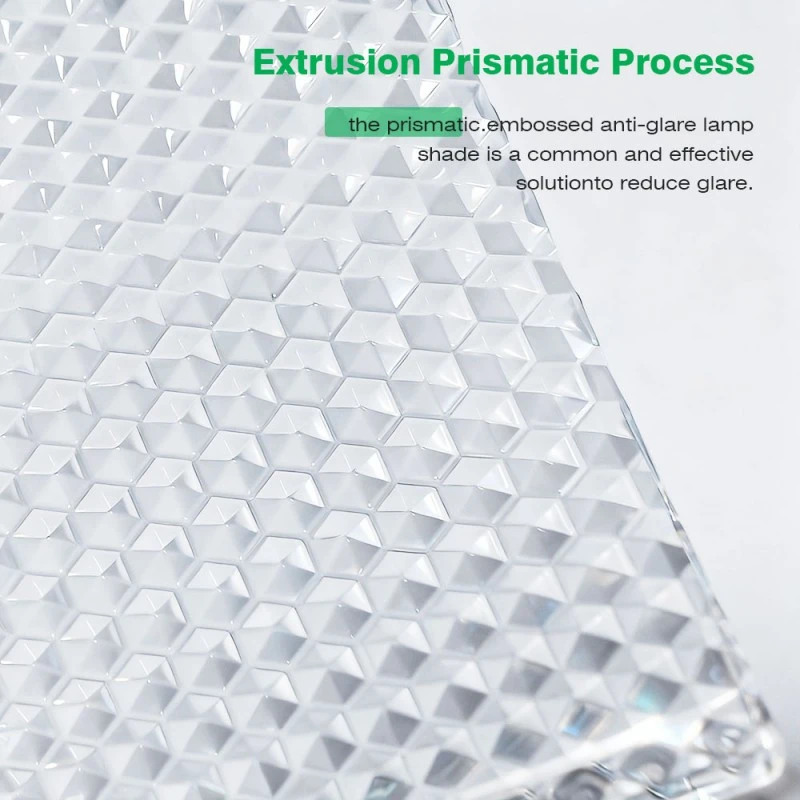

This polycarbonate diamond-patterned lampshade showcases the excellence of modern manufacturing technology through its exquisite craftsmanship. During the extrusion molding process, the lampshade undergoes a unique surface treatment, using precision optical embossing rollers to create the diamond pattern. This innovative technology not only enhances the lampshade's visual appeal but also plays a crucial role in its functionality. When light passes through the diamond-patterned surface, it effectively controls the direction of light propagation, creating soft and even diffused light, thereby improving the overall ambiance of the room.

Widely applicable and Safety

This polycarbonate diamond-patterned lampshade is versatile and suitable for various settings. In office environments, it creates soft, comfortable lighting, enhancing both productivity and comfort. In meeting rooms, the controllable light direction ensures presentations are clear and bright, avoiding glare. Safety is paramount in any lighting solution, and this polycarbonate diamond-patterned lampshade makes no compromises in this regard. Its materials are specially designed to withstand high temperatures and impacts, ensuring safe use in various environments. Furthermore, its lightweight nature reduces the risk of accidents during installation and maintenance.

Company Overview

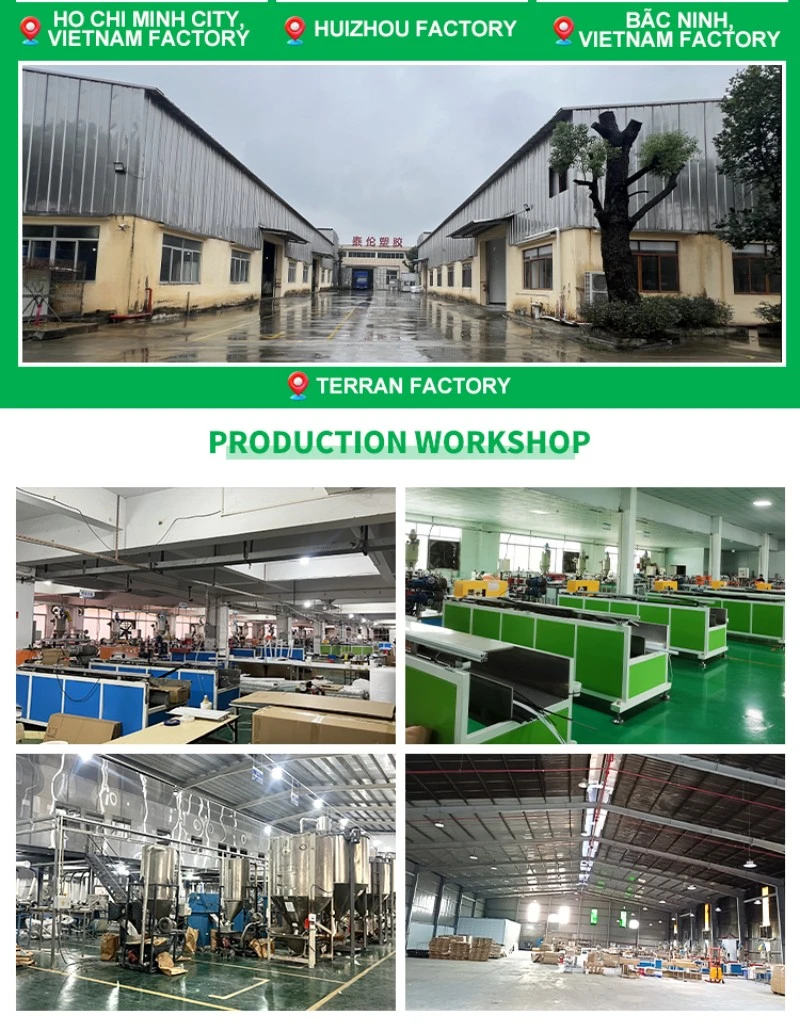

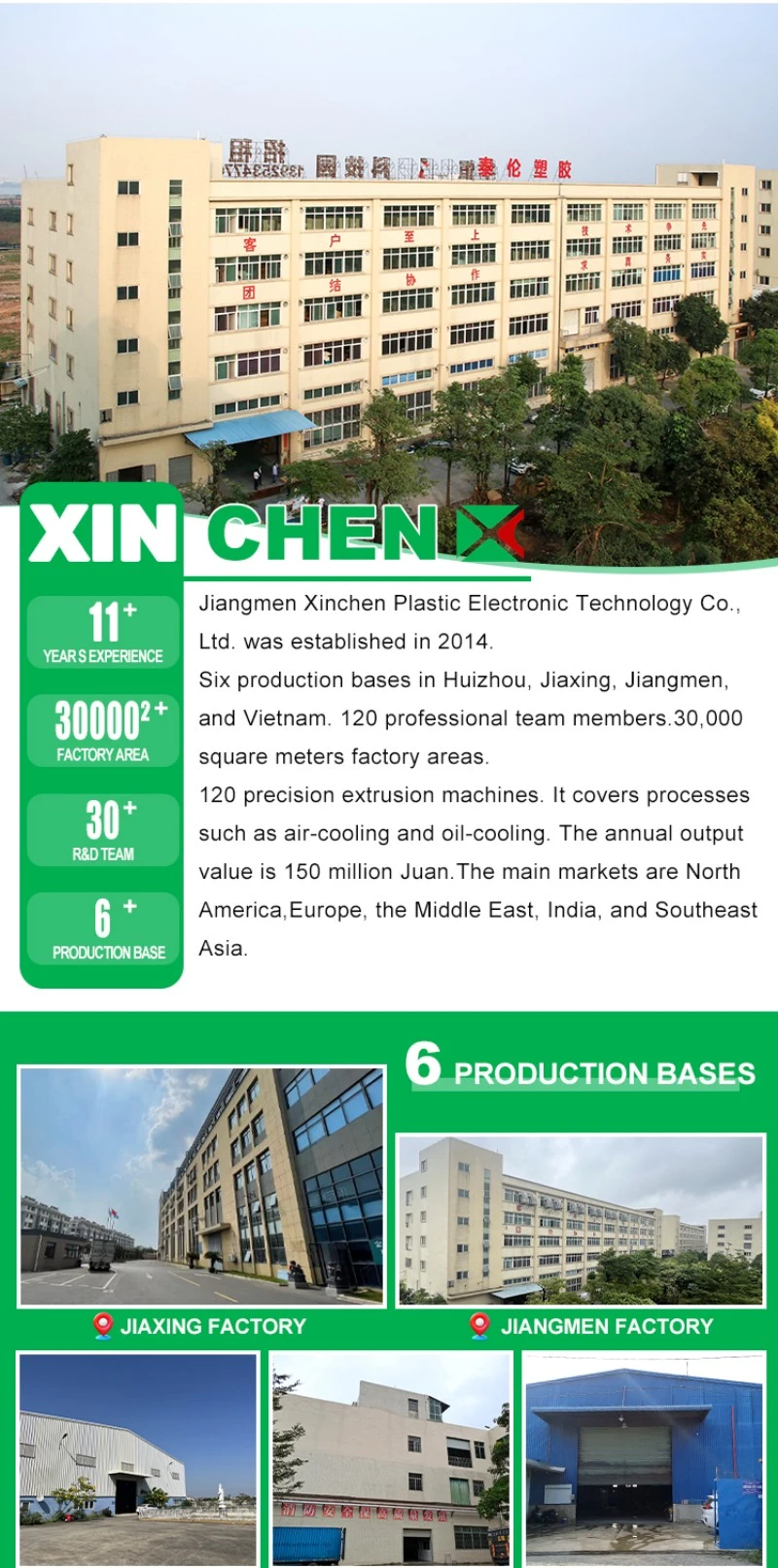

Backed by six world-class production bases strategically located in Huizhou, Jiaxing, Jiangmen, and Ho Chi Minh City, our company boasts an impressive annual output of 150 million units—laying a solid foundation for stable supply of high-quality Polycarbonate Diamond Pattern Extruded Lampshades. We hold an unwavering commitment to quality, integrating strict quality control measures into every link of the production process, from raw material procurement and precision mold manufacturing to the final production. This rigorous and meticulous management ensures that each Polycarbonate Diamond Pattern Extruded Lampshade meets our high standards of excellence and performance.

With a strong export layout covering key markets across Europe, America, the Middle East, India, and Southeast Asia, we have built a trusted reputation in the global lighting industry. Focusing on product innovation and customer satisfaction, we have won the trust of a loyal clientele. Moving forward, we will continue to adhere to the pursuit of excellence, bringing more high-quality Polycarbonate Diamond Pattern Extruded Lampshades and professional lighting solutions to global customers.

FAQ

Q1: What is the difference between a PC Diamond Pattern lampshade and an acrylic lampshade?

A: PC offers superior impact resistance and is less prone to shattering, resulting in higher safety; whereas acrylic (PMMA) features slightly higher light transmittance but lower mechanical strength. PC is better suited for industrial and demanding environments.

Q2: Does the diamond texture affect brightness?

A: It does not significantly reduce brightness. Its primary function is to diffuse the light, ensuring a more uniform distribution while simultaneously minimizing glare, resulting in a more visually comfortable overall brightness.

Q3: Is it prone to yellowing or aging?

A: High-quality PC material can be formulated with UV-resistant additives, offering strong anti-aging properties suitable for long-term use (UV treatment is particularly recommended for outdoor applications).

Q4: Can it be made flame-retardant?

A: Yes. PC material inherently possesses good flame-retardant properties and can be manufactured to meet the UL94 V-0 rating upon request.

Q5: Is customization available?

A: We support OEM/ODM services, including:

●Design of diamond texture depth/pattern

●Dimensions and thickness

●Light diffusion effects

●Color and surface finishes

Q6: Which lighting fixture structures are compatible?

A: It is suitable for use with:

●Extruded linear light covers

●T8/T5 fluorescent tube housings

●Tri-proof light enclosures

●Custom decorative lampshades
